Overview

Submersible truster equipped with polyurethane fiberglass or stainless-steel banana-shaped blades precision-cast to meet hydraulic design requirements, the blades have smooth curved surfaces, streamlined shapes, and are lightweight, high-strength, and excellent in corrosion and abrasion resistance. These characteristics ensure good scouring effect with the liquid at low rotational speeds, thereby creating an optimal water flow. In addition to mixing and stirring functions, this series of products also serves to propel and create water flow.

Applications

Wastewater Treatment

Ideal for aeration basins and equalization tanks, while ensuring water quality and increasing biological process efficiency.

Aquaculture

It enhances water circulation in fish and shrimp farms, producing healthier living conditions, and reducing bottom sediment accumulation.

Lakes, Rivers & Reservoirs

In stagnant or poorly circulated water bodies its promote oxygenation and reduce eutrophication.

Cooling & Industrial Systems

Provides sufficient supporting of effective water circulation in the industry cooling systems, improving heat exchange and enhancing the operation efficiency.

Mainly used in the mixing, stirring, and circulation processes of municipal and industrial wastewater treatment. It can also be used for the maintenance of landscape water environments. By the rotational movement of the impeller, it creates water flow, improves water quality, increases oxygen content in the water, and effectively prevents the deposition of suspended solids.

Working Conditions

Liquid temperature: ≤ 40℃
PH: 5~9
Liquid density: ≤1150kg/m³
Max working depth: 20m

Parameters

Model	Power (kW)	Current (A)	Impeller (mm)	Speed (r/min)	Thrust (N)	Weight (KG)	Installation System
QJB1.5/4-1100/2-65	1.5	4	1100	65	1100	135	System IV
QJB2.2/4-1100/2-96	2.2	6	1100	96	1970	135	System IV
QJB2.2/4-1400/2-63			1400	63	1640	135	System IV
QJB2.2/4-1600/2-56			1600	56	1850	135	System IV
QJB2.2/4-1800/2-38			1800	38	1880	162	System IV
QJB2.2/4-2200/2-32			2200	32	1810	162	System IV
QJB3/4-1100/2-115	3	8	1100	115	2410	135	System IV
QJB3/4-1400/2-65			1400	65	2180	135	System IV
QJB3/4-1600/2-48			1600	48	2140	135	System IV
QJB3/4-1800/2-42			1800	42	2360	162	System IV
QJB3/4-2200/2-38			2200	38	2140	162	System IV
QJB3/4-2500/2-32			2500	32	2090	175	System IV
QJB4/4-1100/2-135	4	9	1100	135	2930	135	System IV
QJB4/4-1400/2-115			1400	115	2430	135	System IV
QJB4/4-1600/2-65			1600	65	2520	135	System IV
QJB4/4-1800/2-56			1800	56	2750	165	System IV
QJB4/4-2200/2-42			2200	42	2780	165	System IV
QJB4/4-2500/2-42			2500	42	2850	185	System IV
QJB5/4-2200/2-48	5	13	2200	48	2960	180	System IV
QJB5/4-2500/2-42	5	13	2500	42	3090	205	System IV
QJB7.5/4-2500/2-42	7.5	17	2500	42	3980	210	System IV

The above mixer parameters are obtained under the test of voltage of 380V and frequency of 50Hz.

Dimensions chart

Model	L	ø	Hole size for installation
Model	(mm)	(mm)	(mm)
QJB (1.5~4)/4-1100/2	1030	1100	1400*1400
QJB (2.2~4)/4-1400/2	1030	1400	1400*1400
QJB (2.2~4)/4-1600/2.	1030	1600	1400*1400
QJB (2.2~4)/4-1800/2	1030	1800	1400*1400
QJB (2.2~5)/4-2200/2	1130	2200	1500*1500
QJB (3~7.5)/4-2500/2	1130	2500	1500*1500

Structure Diagram

Flow Field Diagram

QJB1.5/4-1100/2-65

QJB2.2/4-1100/2-96
QJB2.2/4-1600/2-56
QJB2.2/4-1400/2-63
QJB2.2/4-1800/2-50
QJB2.2/4-2200/2-42

QJB3/4-1100/2-115
QJB3/4-1600/2-48
QJB3/4-2200/2-38
QJB3/4-1400/2-65
QJB3/4-1800/2-42
QJB3/4-2500/2-32

QJB4/4-1100/2-135
QJB4/4-1600/2-65
QJB4/4-2200/2-42
QJB4/4-1400/2-115
QJB4/4-1800/2-56
QJB4/4-2500/2-42

QJB5/4-2200/2-48
JB5/4-2500/2-42

QJB7.5/4-2500/2-42

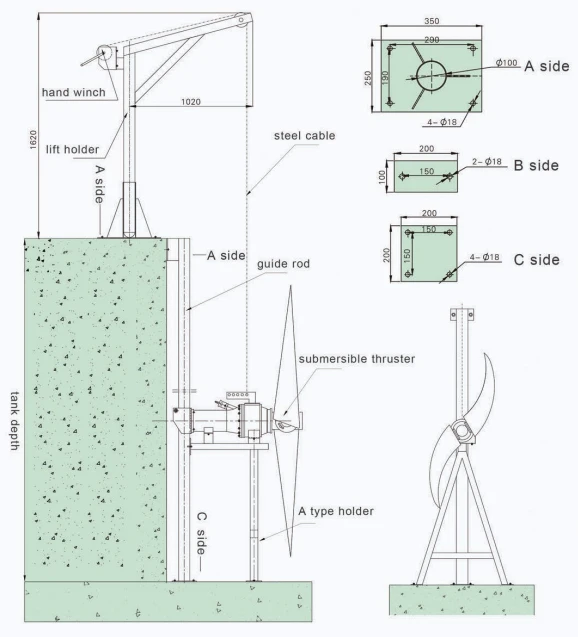

Installation System

Installation Ⅳ
1. The connection shall be expansion boll between side support & a tank wall.
2. Please inform tank depth when you put order to us.
